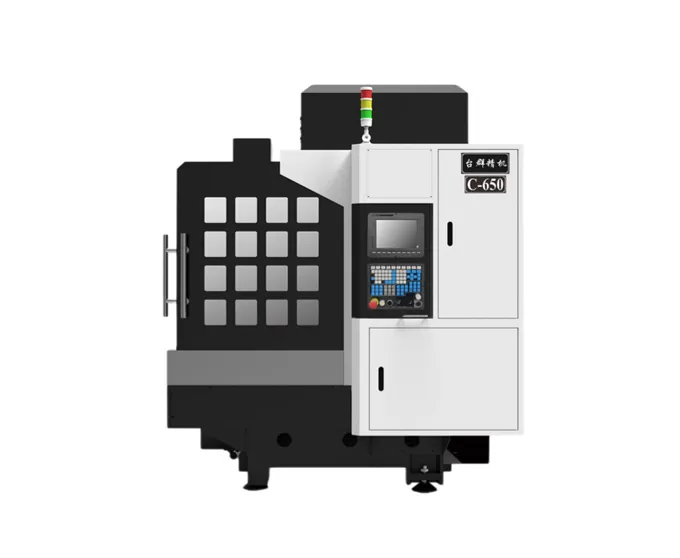

La máquina de grabado y fresado CNC C-650 pertenece a la máquina de grabado y fresado de pórtico de tipo viga fija, que es una máquina herramienta CNC de alta eficiencia y alta precisión.
Proveedor de soluciones integradas
- Gantry Structure Design
- Meehanite cast is tempered for stress relief
- Pretension on all axis to minimize thermal distortation
- Main Components used
- Internationl compatibility
- Diversified option
- Optional 13T hidden Tool Magazine
- SYNTECH Control
- Re-developed system for engraving
- Advanced equipment and experienced personnel for QC
- Every machine must go through hundreds of testing and inspection before delivery
- Dynamic balance testing for key parts such as spindle
- Machined parts must be tested to check the machine precision
.jpg)
| Description | C-650 | |
| Table Size | milímetro | 500×600 |
| 3 Axis Travel | milímetro | 635/500/240(X/Y/Z) |
| Spindle Speed | Rpm | 2000-24000 |
| Spindle Taper | ER25 | |
| Spindle power | kilovatio | 5.5 |
| 3 Axis Motor | kilovatio | 0.85/0.85/0.85(X/Y/Z) |
| Rapid Feed | m/min | 10 |
| Cutting Feed | m/min | 7.5 |
| Positioning accurancy | milímetro | 0.005 |
| Repeat Accurancy | milímetro | 0.003 |
| Max.Load | kg | 350 |
| Machine Weight(about) | kg | 3100 |
| Machine Dimension | milímetro | 2080×1840×2320 |
| Standard | Optional | |
| Full enclosure guard | Too magazine with 13 stations | |
| 3 Axes telescopic cover | ||
| Air blasting through spindle | ||
| Operation status lamp | ||
| Working lamp | ||
| MPG handwheel | ||
| RS232 interference | ||
| Automatic lubrication system | ||
| Heat exchanger for electric cabinet | ||
| Cutting fluid cooling system | ||
| SYNTECH control system | ||
| Rear chip flushing system | ||
| Tool box with tools, leveling bolts and pads | ||
| Operation and programming manual | ||
| Tool setting device | ||
Diverfified material application such as Steel,Brass,Aluminum,Graphite,Organic glass etc
